Giá khớp có góc định trước Spacy Articulator - Cái

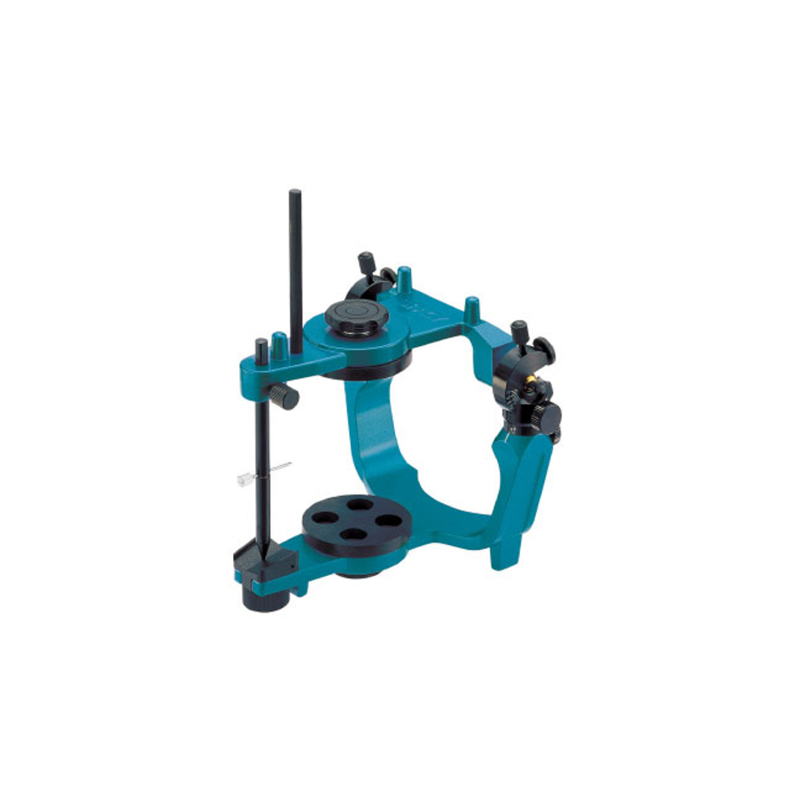

GIÁ KHỚP CÓ GÓC ĐỊNH TRƯỚC SPACY ARTICULATOR

NXS: YDM - NHẬT BẢN

Hàng Chính Hãng

Quy cách: Cái

*Removable upper member facilitates wax-ups.
*Wide space on the lower jaw frame provides excellent workability.
*Falling down preventing design when upper jaw is opened.

*Balance keeping with three projections when it is set upside down.
*Place for name & number marking is available on the frame.

Specifications

*Distance between Upper and Lower Frames/ 100mm

*Intercondylar width/ 110mm

*Sagittal condylar path inclination/ 25°

*Bennett angle/ 15°

*Balkwill angle/ 20°

*Angle of incisal path
/ Sagittally 10°
/ Laterally 10°

Smart 2: Condylar Articulator with Average Type For identulous.

*Able to make Full-balanced Occlusion denture.

Specifications

*Distance between Upper and Lower Frames/ 94mm

*Intercondylar width/ 110mm

*Sagittal condylar path inclination/ 30°

*Bennett angle/ 7.5°

*Protrusive movement/ 0 to 7mm(every 1mm)

*Balkwill angle/ 20°

*Angle of incisal path
/ Sagittally 10°
/ Laterally 10°

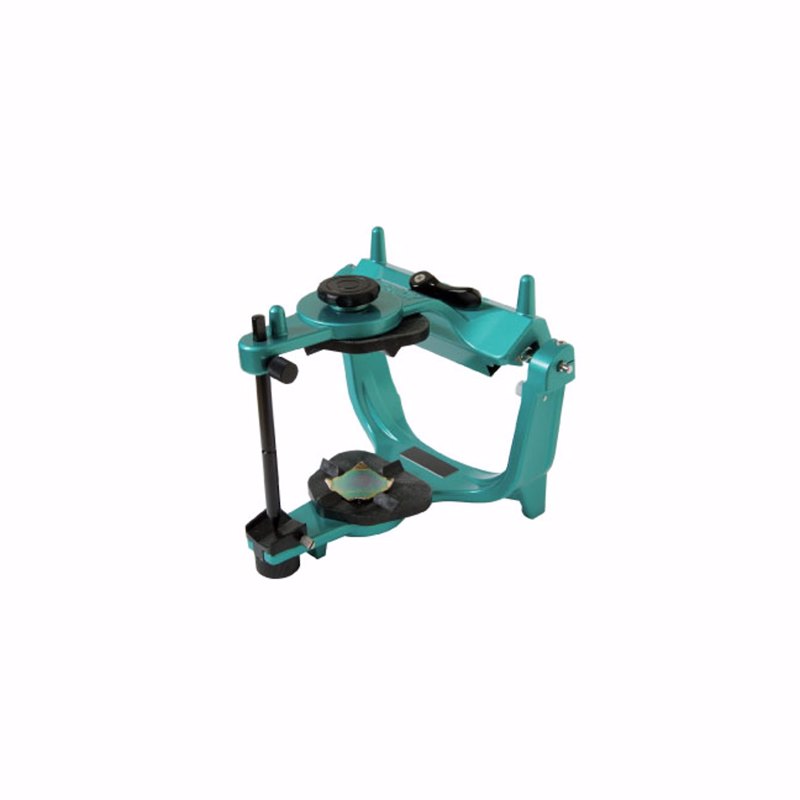

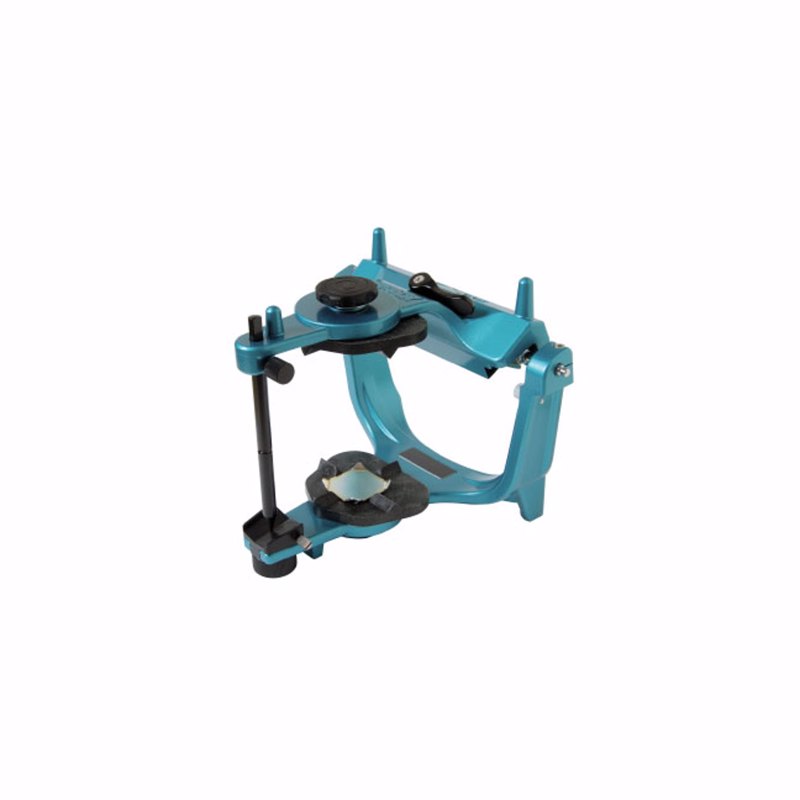

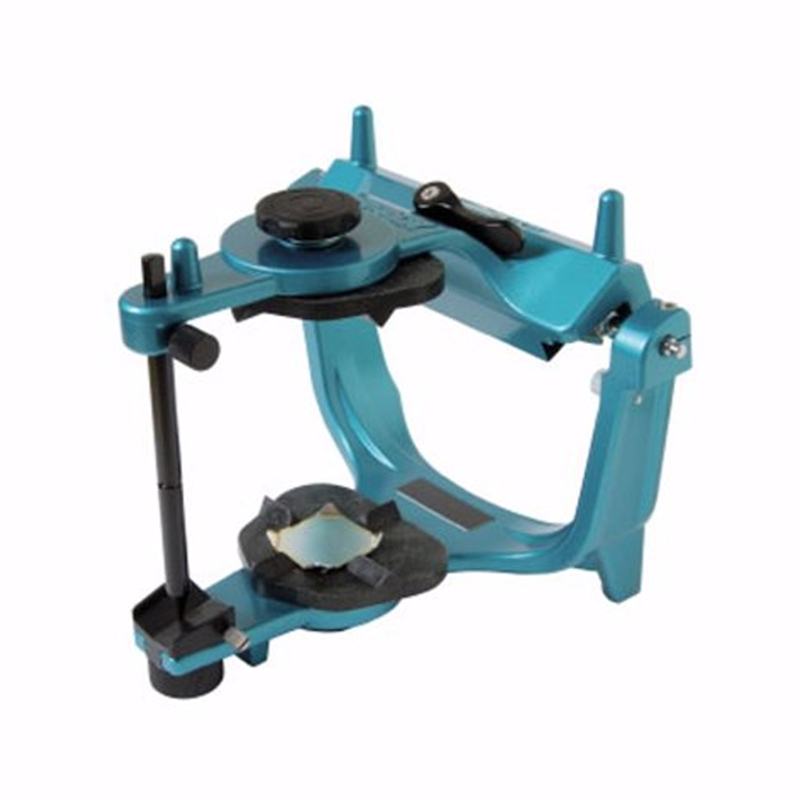

Spacy Articulator (Semi-Adjustable) Mobile

*Wide space on the lower jaw frame provides excellent workability.
*Balance keeping with three projections when it is set upside down.

Specifications

*Distance between Upper and Lower Frames/ 94mm

*Intercondylar width/ 110mm

*Sagittal condylar path inclination/ 15~50°(every 5°)

*Bennett angle/ 0~20°(every 5°)

*Balkwill angle/ 20°

*Angle of incisal path
/ Sagittally 10°·15°·20°
/ Laterally 10°·15°·20°

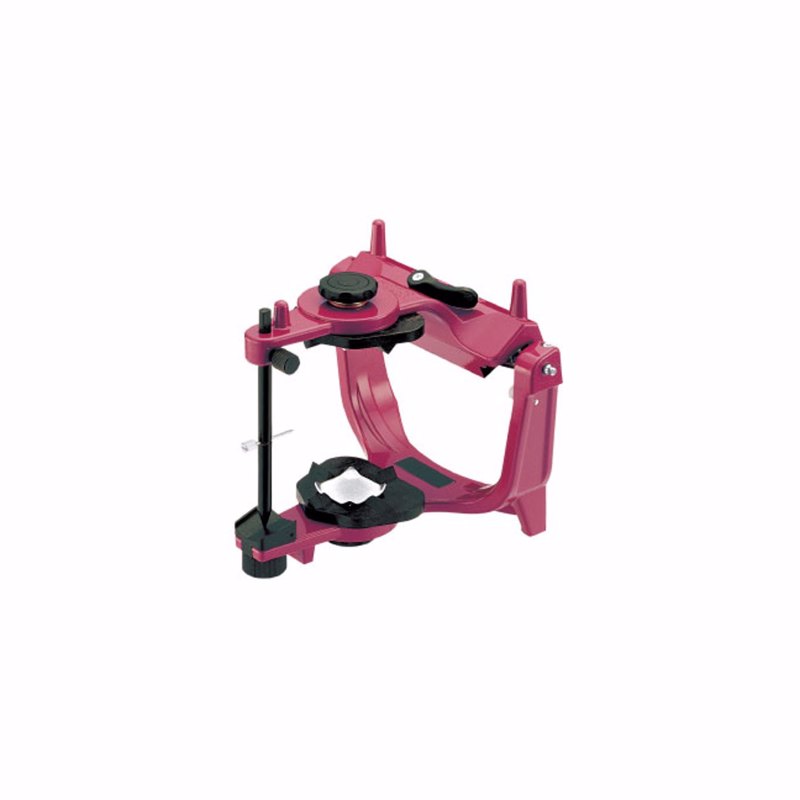

Spacy Articulator (Semi-Adjustable) Wing

Specifications

*Distance between Upper and Lower Frames/ 100mm

**Intercondylar width/ 110mm

*Sagittal condylar path inclination/ 0~60°(every 5°)

*Bennett angle/ 0~30°(every 5°)

*Balkwill angle/ 20°

*Angle of incisal path
/ Sagittally 10°·15°·20°
/ Laterally 10°·15°·20
